MAIN HARNESS, FORD COYOTE NON-VVT WITH SMART COILS
MAIN HARNESS, FORD COYOTE NON-V V T WITH SMART COILS
Main harness for 2011-present Ford Coyote (5.0L) Engines using Smart Coils
This wiring harness interfaces a Holley EFI ECU to a Ford Coyote engine that has had the cam VVT hardware locked out. It is meant to be used in conjunction with an injector harness, a Holley Smart coil harness 558-312 (for use with 556-112 Holley Smart Coils) or a GM LS Ignition Harness for LS Coils. Most stock sensors are used with this harness. There are two optional connectors for interfacing with CAN based Holley modules. There are some loose leads for grounds and power connections.

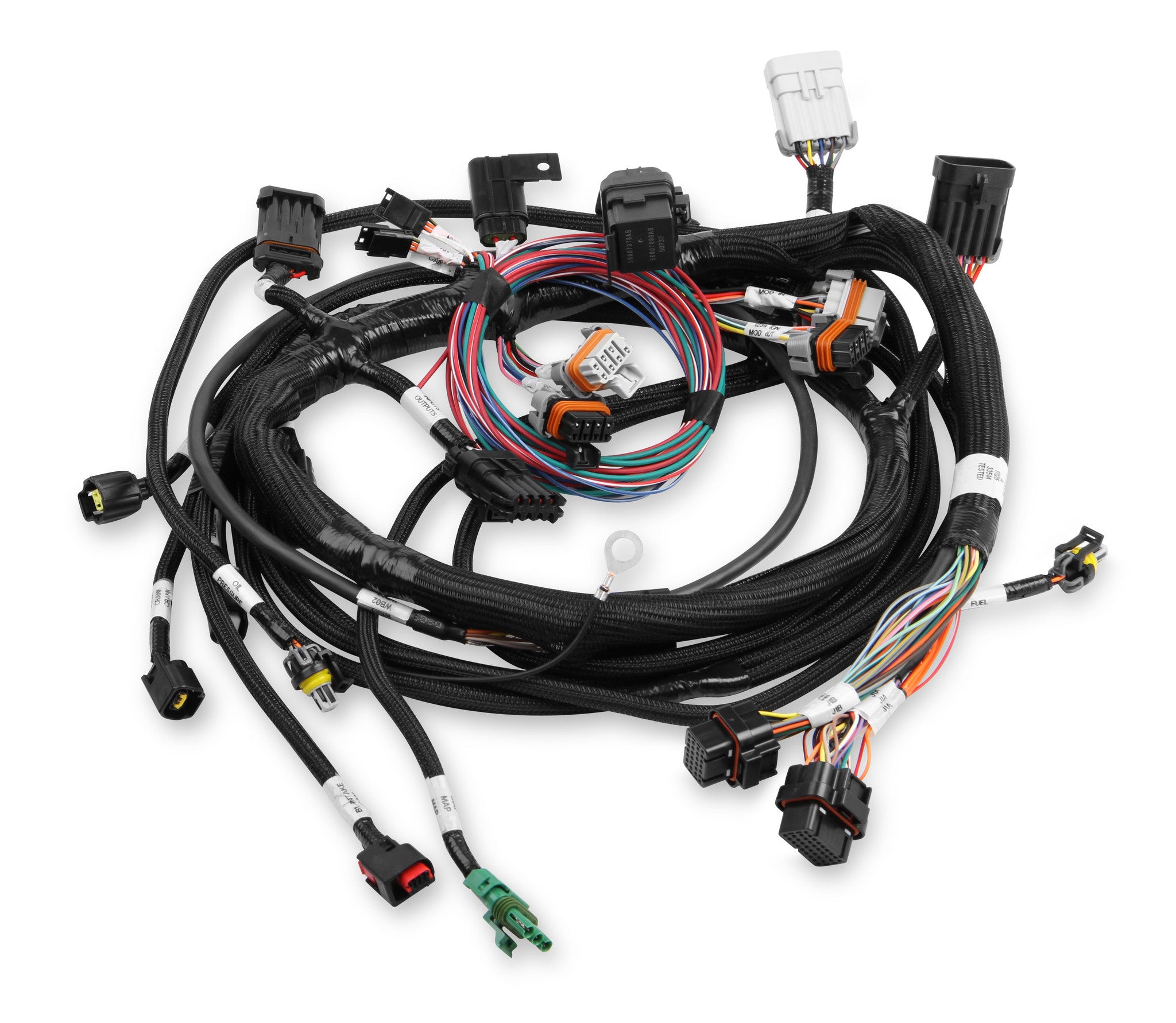

The picture is of a 558-109, no current picture is available at this time of release 12/15/15
