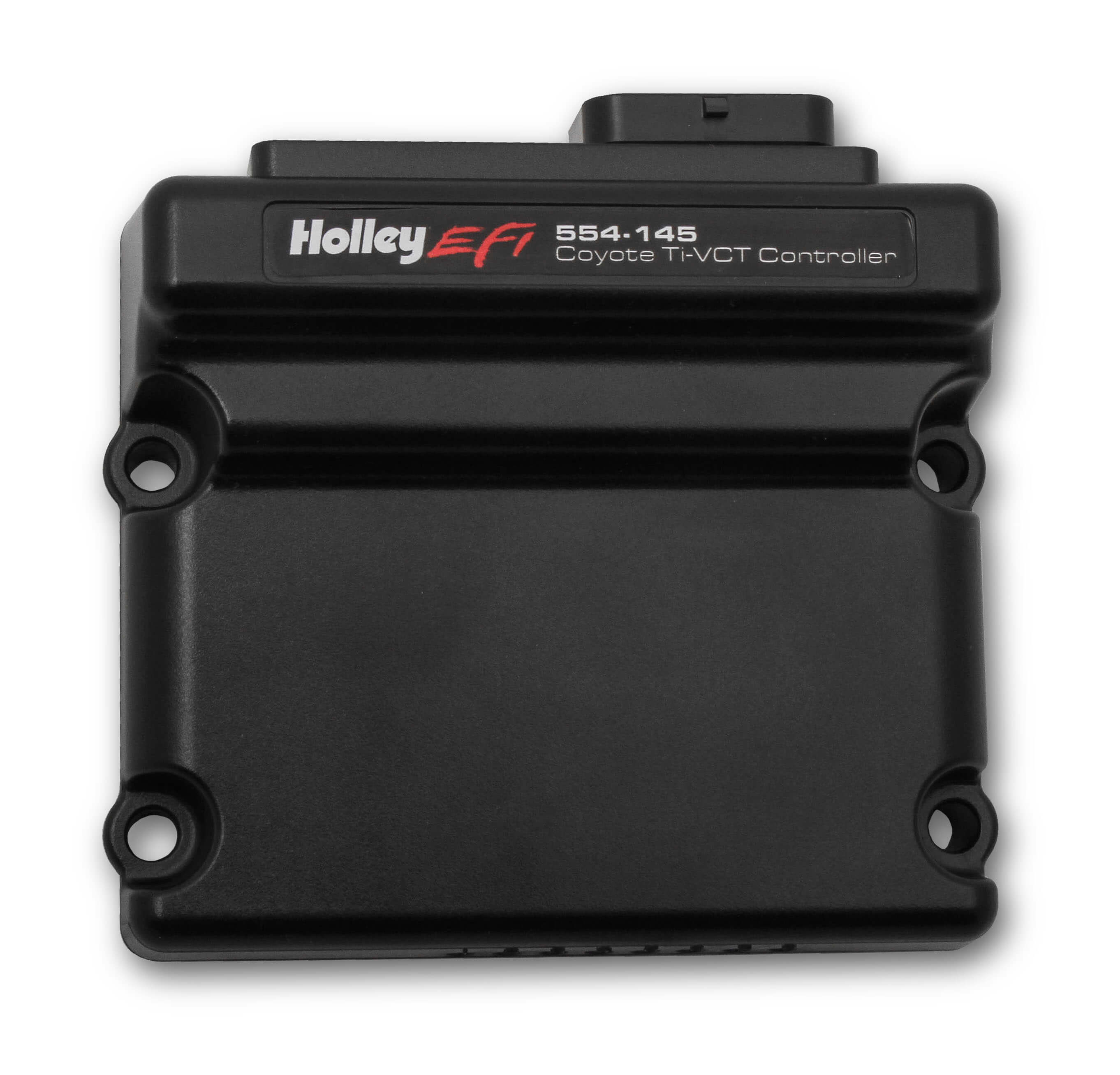

Holley EFI Ford Coyote Ti-VCT Control Module

Holley

$ 1,029.95 $ 1,145.00
Part# HLY-554-145


Share:
Introducing Coyote Twin Independent Variable Cam Timing Control from Holley EFI! Do you have a coyote crate engine going in your dream car? Is your weekend road race warrior powered by a coyote junkyard engine with locked cams? Unlock the full potential of your high revving power plant with the Holley EFI Plug and Play Coyote Ti-VCT Control Module.

Features:

  • Compatible with HP or Dominator EFI
  • Ti-VCT Cam control down to 400 RPM
  • User programmable tables enable the end user to fine tune aftermarket Ti-VCT compatible camshafts
  • Commanded Timing matched within 1 degree
  • 4 Built in Diagnostic LEDS make diagnostics easy in the event of a cam or crank sensor failure
  • Integrated Stock Cam Position Tables – eliminate tuning guess work, optimal drive-ability and power right out of the box
  • Main Harnesses come terminated with Ford TPS and IAC Connectors, making it easy to convert from a DBW Throttle Body to a Manual Throttle Body, if desired
  • Installation of an external MAP sensor is required, we recommend part number 538-13 for N/A applications
  • Main Harnesses includes a Power Tap Connector, as a convenient source for power and grounds when adding additional sensors or actuators
  • CANBus communication between Coyote Ti-VCT and Holley EFI ECU for high speed data transfer and diagnostics
  • Pre-calibrated Ford sensor drop downs in the Holley EFI Software
  • Plug and Play Main Harness for 2011-2017 Coyote engines w/ Stock Camshafts using Stock Coils (558-110)
  • Plug and Play Main Harness for 2011-2017 Coyote engines w/ Stock Camshafts using Holley EFI Smart Coils (558-122)
