HOLLEY EFI DIGITAL DASH STAND ALONE KIT (CAN BE USED WITH HOLLEY EFI)

Holley

$ 1,404.95 $ 1,562.00
Part# HLY-553-109


Share:

HOLLEY EFI DIGITAL DASH STAND ALONE KIT

-Same dash as 553-106 but includes I/O adapter, USB memory stick, terminated vehicle harness, oil pressure sensor(100 psi sensor), CTS sensor, MAT sensor, USB GPS



Fully Customizable with a Variety of Gauge and Indicator Screens, 7.5" wide, 4.625" tall, 1" deep

  • Plug and play connection to all Holley EFI systems via CAN bus
  • Compact, customizable dash for use in a variety of motorsports applications

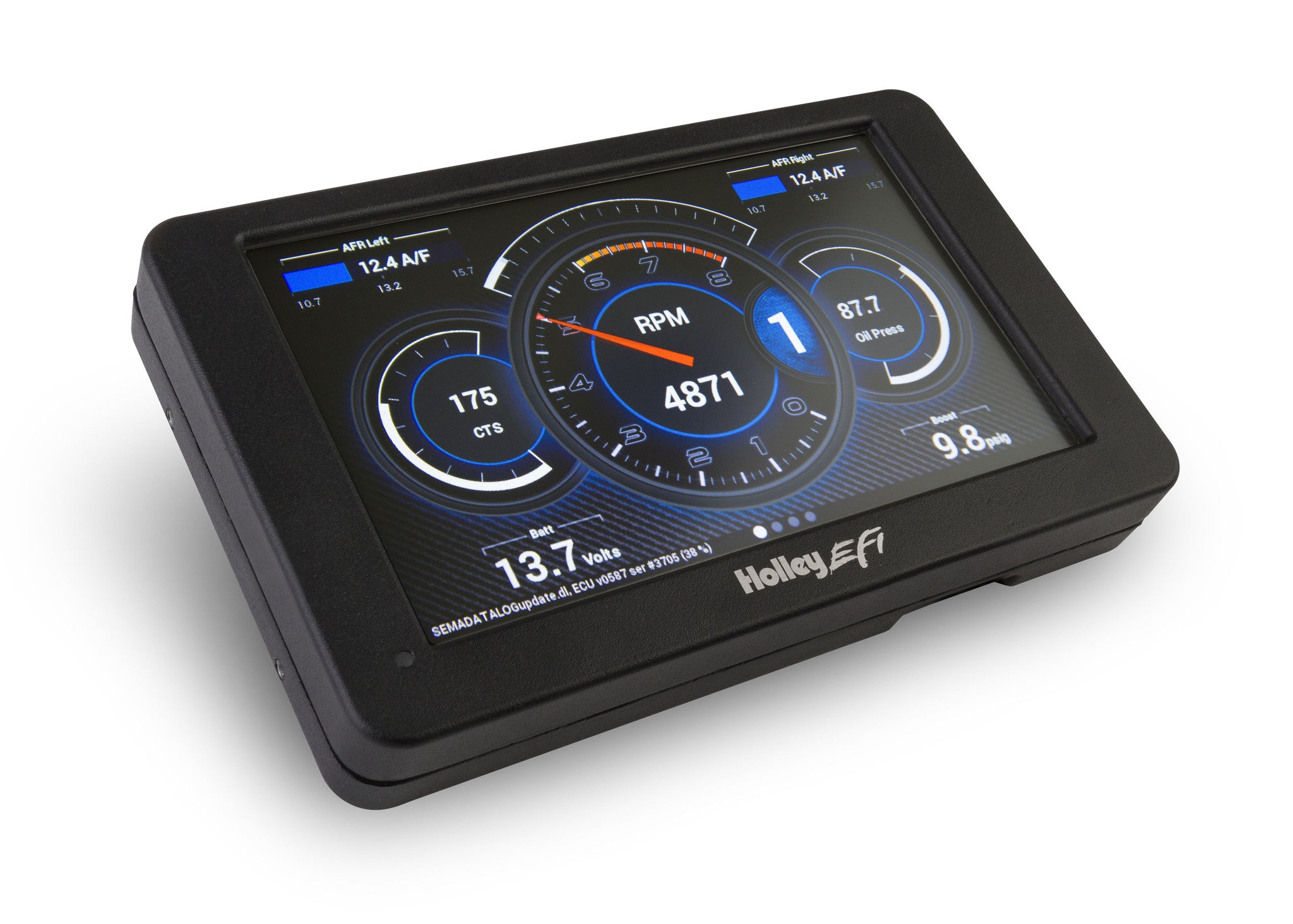

  • 7" low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun
  • 800x480 resolution with auto brightness
  • Operating voltage min 8V - 20V
  • Weather proof aluminum housing featuring flexible mounting options
  • Completely customizable display of all EFI parameters including every user configurable input and output available
  • Multiple gauge and indicator types with limitless customization options
  • Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
  • Virtual Switch Panel (replaces the need for physical switches)
  • User defined alarms for any input
  • Configurable progressive shift lights and light bar
  • Control and on screen playback of EFI data logs
  • Download and save Holley EFI data logs to external USB memory stick
  • Expandable internal storage on micro SD card
  • Support for future USB devices
  • Upgradable with future software enhancements

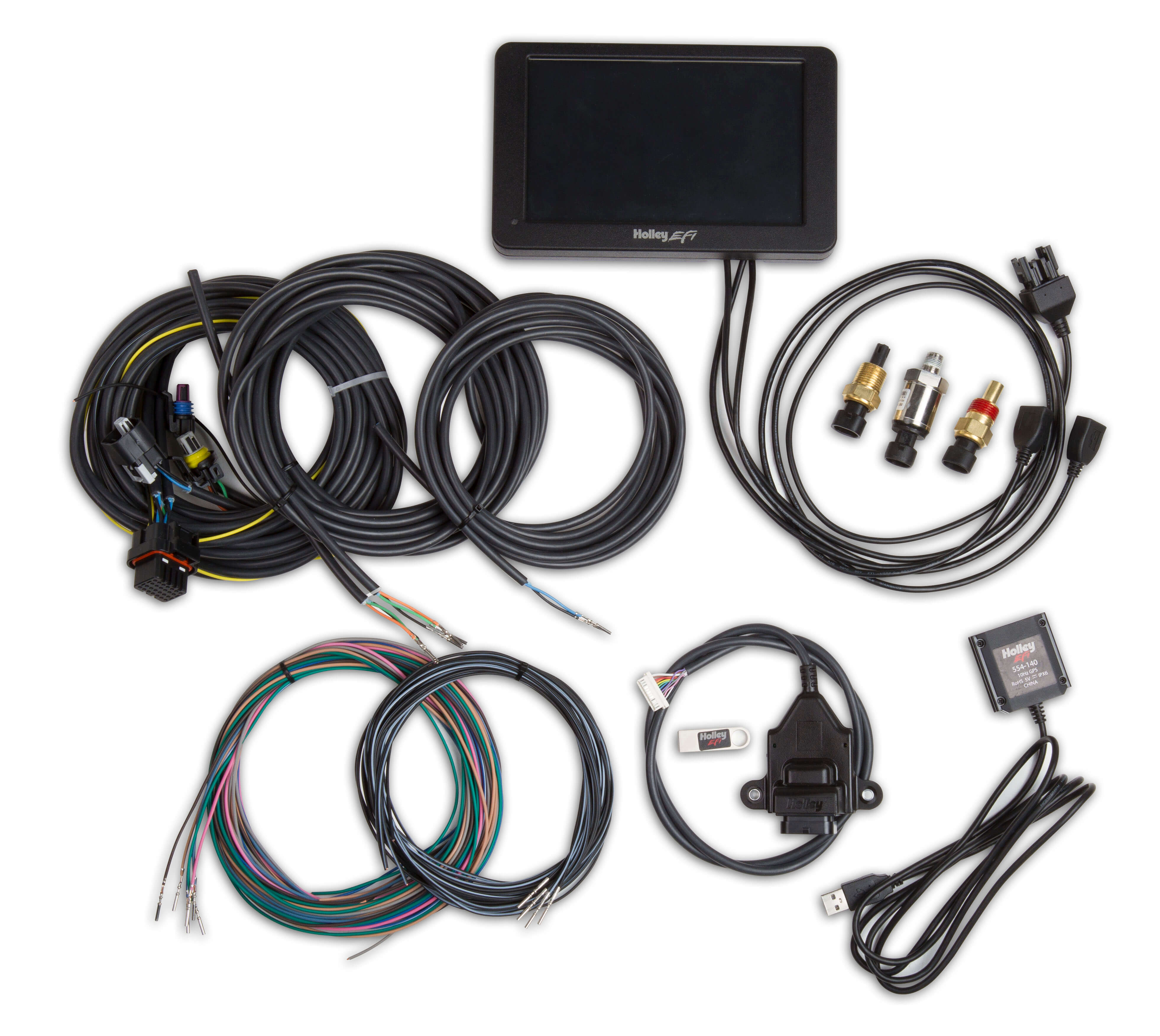

  • Included parts: Standalone digital dash kit with I/O adapter, USB memory stick, terminated vehicle harness, oil pressure sensor, CTS sensor, MAT sensor, USB GPS

INSTRUCTIONS FOR PART # 553-109
