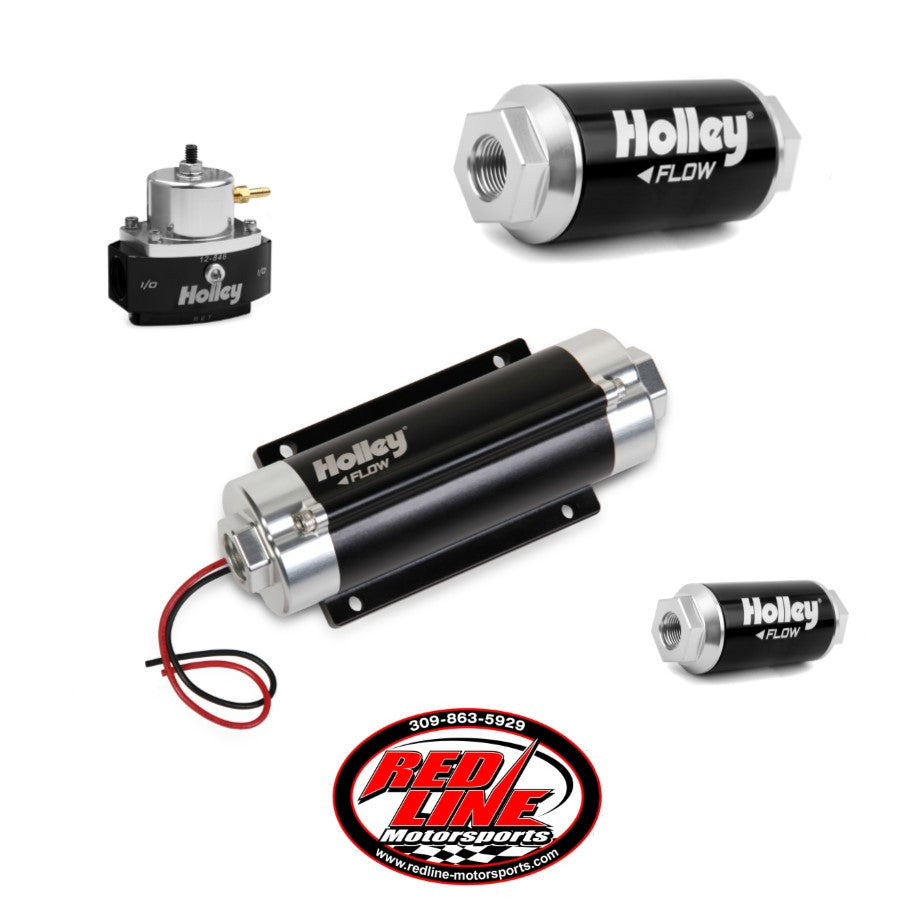

100 GPH HP In-line Fuel Pump Kit (Up to 900 HP N/A OR 500 HP BOOSTED ON GASOLINE at 13.8V)
Redline Motorsports Inc.
- THIS IS A KIT PUT TOGETHER BY REDLINE MOTORSPORTS INCLUDING THE CORRECT FUEL PUMP, REGULATOR AND PRE AND POST FILTER FOR APPLICATIONS UP TO 900 HP NATURALY ASPIRATED OR 500 HP BOOSTED ON GASOLINE.
- Kit does not come with lines or fittings.
- Pump has Billet aluminum construction for durability & good looks
- -8 an o-ring inlet/outlet for high flow and superior sealing
- Compatible with 12v to 18.5v systems for street or race use
- Pump is Compact (7.5” long x 3” wide x 2.75” tall) for easy installation on frame rails or other tight areas
- Pump weighs only 3.1 lbs.
- Current draw at 43 psi and 13.5 is 8.6 amps
- Filers have Female 8AN O-ring inlet and outlet
- Filters Measures 5” long and 2” diameter
- 100 micron pre filter and 10 micron post filter
- Regulator has (1) -8 an o-ring inlet, (1) -8 an o-ring outlet, (1) -6 an o-ring return
- NOT FOR USE WITH METHANOL!
This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981508ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985008ERL.
